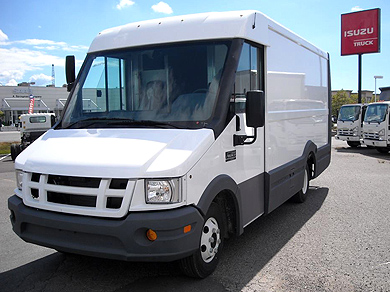

View Gallery Download a Brochure7 Reach™ Walk-in Van Specifications

GVWR/GCWR
12,000 lbs.
PAYLOAD (preliminary) 12ft. @ 3,408 lbs./14ft. @ 3,267 lbs.
GAWR front 5,360 lbs.
GAWR rear 8,840 lbs.
Front Axle Capacity 6,830 lbs.
Rear Axle Capacity 11,020 lbs.
Ratio 5.125
Suspension
F/R Springs Tapered/Multi-Leaf
Capacity 6,830/9,880 lbs.
Frame
Section Modulus 6.07 in.³
Resistance Bending Moment 267,080 lb.-ft./in.
Service Brakes
System Vacuum/Hydraulic with 4-Channel ABS
Front/Rear Disc/Drum
Transmission
Standard Aisin A460 6-speed auto. with double overdrive and lock-up 2nd-6th gears
Engine Isuzu 4JJ1-TC turbocharged intercooled diesel
Displacement 3.0L (183 in.³)
Engine Power 150hp @ 2,800 rpm
Engine Torque 282 lb.-ft. @ 1,600-2,800 rpm
Oil Level Indicator Dash-mounted oil level check switch and light
Limited Slip Differential Optional
Alternator 140-amp
Batteries 2 Maintenance-free 750-CCA
Tires 215/85R16E (10-ply)
Steering / Steering Column Integral hydraulic power / Tilt column
Fuel Tank 25 Gallon in-rail / 33 Gal. 176 WB only
Fuel/Water Separator Dual fuel filter with dash-mounted indicator light

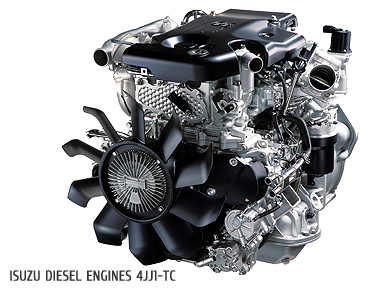

Standard on the NPR ECO-MAX is the newest engine in the Isuzu family -- the 4JJ1-TC.

Its high-pressure common-rail fuel injection system wrings the most energy out of every drop of fuel, and its intercooled, variable-geometry turbocharger provides excellent response over the engine's entire RPM range. Together, these features help the 4JJ1-TC produce 150 horsepower and 282 lbs.-ft. of torque.

Despite its spirited performance, this engine is a miser. In fact, the NPR ECO-MAX achieves up to 20% better fuel economy than the previous 12,000-lb. GVWR NPR. Like every Isuzu powerplant, the 4JJ1-TC is a true commercial vehicle engine. Each component has been crafted to reduce maintenance and increase durability.

So it's no surprise that the 4JJ1-TC can be driven up to 10,000 miles between oil changes and has a class-leading B10 durability rating of 310,000 miles -- meaning that 90% of 4JJ1-TC engines will reach that mileage before requiring an overhaul.
n-series-dimensions

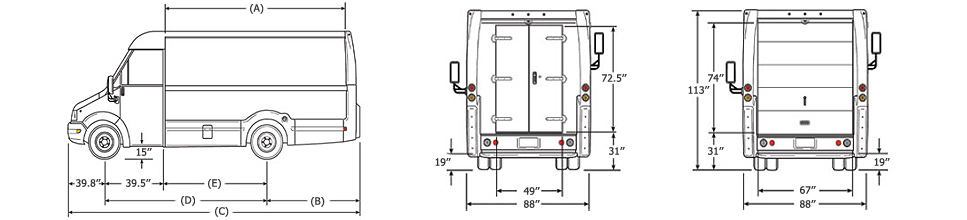

Reach body dimension
Dimension Description 12' 14'
A Cargo Floor Length 150.9" 171.0
B Behind Rear Axle 69.8" 89.9"
C Overall Length 260.9" 281.0"
D Wheel Base 151.0" 151.0"
E Bulkhead to Axle 94.6" 94.6"
