View Gallery Download a Brochure7 NPR GAS Specifications

  NPR GAS NPR GAS CREW CAB
GVWR/GCWR
12,000/18,000 lbs. 12,000/18,000 lbs.
Body/Payload Allowance 6,829-6,997 lbs. 6,189-6,244 lbs.
Allowance GAWR front 4,860 lbs.
Allowance GAWR rear 8,840 lbs.
Front Axle Capacity 6,830 lbs.
Rear Axle Capacity 11,020 lbs.
Ratio 5.125
Suspension
F/R Springs Tapered/Multi-Leaf
Capacity 7,220/12,900 lbs.
Frame
Section Modulus 7.20 in.3
Resistance Bending Moment 316,800 lbs.-ft./in.
Service Brakes
System Vacuum/Hydraulic w/4-Channel ABS
Front/Rear Disc/Drum
Transmission
Standard 6L90 6-Speed Auto. with Double Overdrive and Lock-Up Converter
Engine GMPT L96 (Gen IV) V8 Vortec 6000
Optional KL8 (Alternative Fuel Capable Engine)
Displacement 6.0 L (365.0 CID)
Engine Power 297 HP @ 4,300 RPM
Engine Torque 372 lb.-ft. @ 4,000 RPM
Limited Slip Differential Optional
Alternator 145-amp 145-amp
Batteries 1 Maintenance Free 750 CCA
Tires 215/85R16E (10-Ply)
Steering Integral Hydraulic Power
Steering Column Tilt & Telescopic
Fuel Tank 30.0 Gal. In-Frame

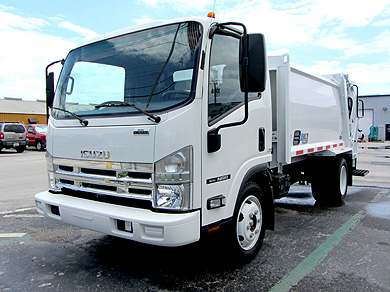

The Isuzu N-Series gas truck is powered by General Motors' 6.0L Gen IV small block V-8 engine, coupled to a new double overdrive 6-speed automatic transmission with lockup torque converter that improves both vehicle performance and fuel economy.

With 297 hp and 372 ft.-lbs. of torque, the engine carries on with well-proven design features like a 100,000 mile maintenance-free ignition system, a long-life timing chain and cast stainless steel exhaust manifolds. The Isuzu N-Series gas truck is also available with an optional CNG/LPG capable engine.
n-series-dimensions
NPR / NPR-HD
Wheelbase (in.) Cab to
Axle (in.)
Cab to End
of Frame (in.)
Back of
Cab (in.)
Overall
Length (in.)
Body
Length (in.)
Overall
Width (in.)
Front Axle
Width (in.)
Overall
Height (in.)
109.0 86.5 129.6 6.5 200.5 10-12 81.4 65.6 90.0/90.9
132.5 110.0 153.1 6.5 224.0 14 81.4 65.6 90.0/90.9
150.0 127.5 170.6 6.5 241.5 16-18 81.4 65.6 90.0/90.9
176.0 153.5 196.6 6.5 267.5 20 81.4 65.6 90.0/90.9
NPR / NPR-HD crew cab
Wheelbase (in.) Cab to
Axle (in.)
Cab to End
of Frame (in.)
Back of
Cab (in.)
Overall
Length (in.)
Body
Length (in.)
Overall
Width (in.)
Front Axle
Width (in.)
Overall
Height (in.)
150.0 88.5 131.6 5.0 241.5 12 81.4 65.6 90.8/91.1
176.0 114.5 157.6 5.0 267.5 16 81.4 65.6 90.8/91.1
